Direct fired air handlers for the finishing market deliver fresh, clean outside air into the spray booth or finishing area, as required during active spray and/or cure cycles. Together with the air handler, the spray booth maintains a slightly positive pressurized space resulting in concentrated paint curing times at optimal production operation. Dirt and debris are kept out of the pressurized finishing area while paired with on-board booth exhaust system.

Air handlers for spray booth finishing areas allow for 100% outside air during spray mode operation. Based on heater configuration, cure mode operation varies from a reduced airflow capacity or allowing up to 75% return air capacity. During the paint cure cycle, air supplied to the finishing area is super-heated. The high temperatures within the finishing space allow for efficient production progression during vital business hours.

The pre-engineered remote panels for finishing applications offer a wide range of options. There are six different control options including basic analog up to digital deluxe. The assortment of panel availability allows for desired panel for the job to be customized for application type based on spraying only, curing only, or both spraying and curing paint together. Below is a brief overview of what each remote panel has to offer. Below, you'll find more in depth information about each individual control.

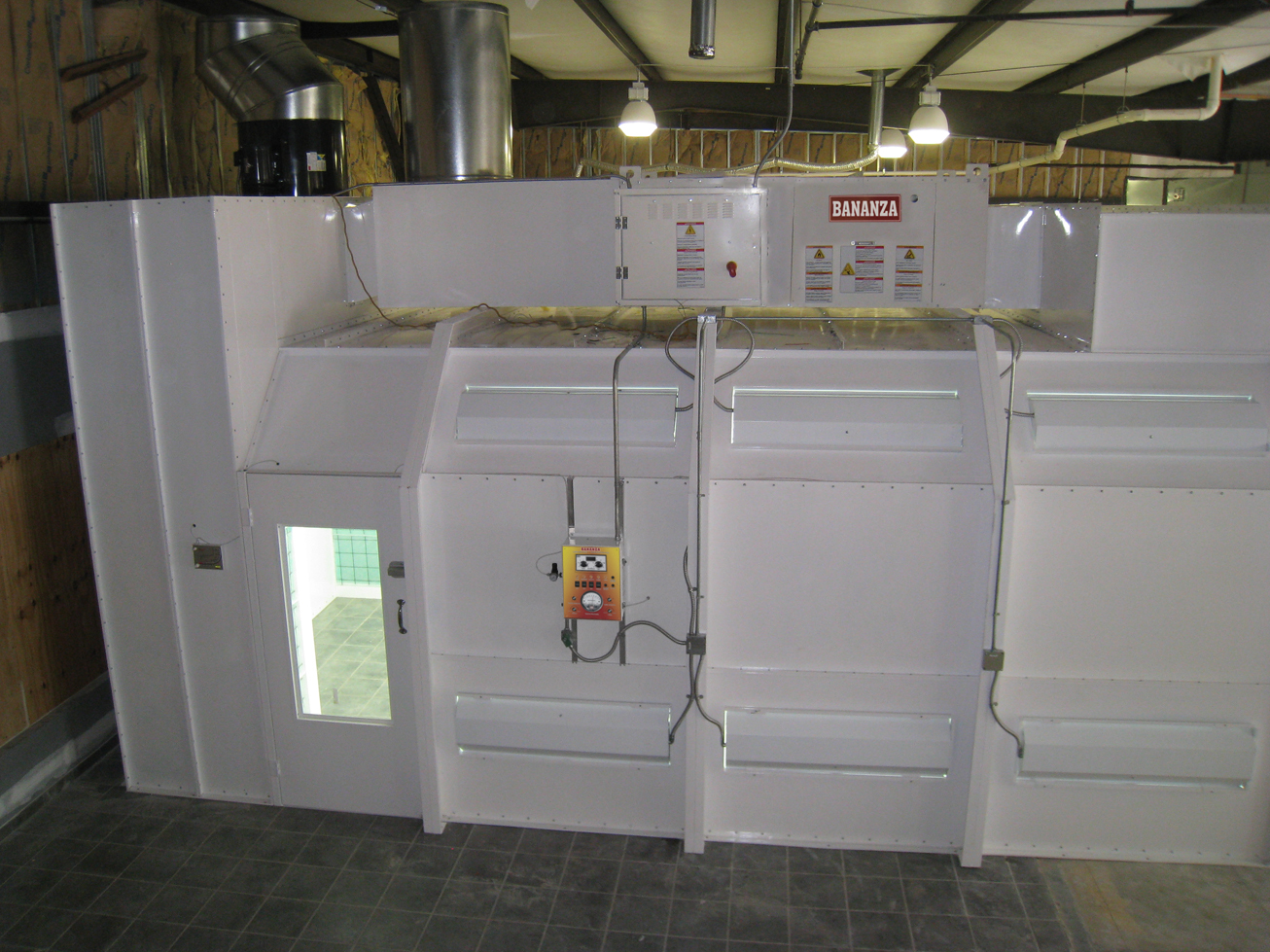

Booth Mounted Automotive Spray Booth Heater

Remote Feature	Basic Spray	Basic Cure	Analog Dual #2	Digital Dual #1	Digital 60-160	Deluxe Digital
Available Mode	SPRAY MODE	CURE MODE	SPRAY & CURE	SPRAY & CURE	SPRAY & CURE	SPRAY & CURE
Blower Light & Switch	X	X	X	X	X	X
Burner Light & Switch	X	X	X	X	X	X
Booth Lights Light & Switch	X	X	X		X	X
Cool Down Light/Timer						X
Magnehelic					X	X
Adjustable Purge & Cure Timers			X			X
Speed Potentiometers	0	0	0	2	1	2
Type/Display	ANALOG	ANALOG	ANALOG	DIGITAL	DIGITAL	DIGITAL

SPRAY-CURE™ Remote Panels

Basic II (Spray) Remote	Basic II (Cure) Remote	Dual #2 Remote
This control is used for spraying paint with discharge air temperature from 55°F to 90°F. Discharge temperature of heater remains constant as selected on temperature selection dial. Burner flame is modulated by discharge temperature control, which is governed by remote temperature selector. ON/OFF switch for booth lights. FAN ON / BURNER ON mode: Heater operates continuously, supplying make-up air and maintaining a constant discharge temperature. FAN ON / BURNER OFF mode: Blower can operate without burner for cool down.	This control is used for curing paint with discharge air temperature from 120°F to 170°F. Discharge temperature of the heater remains constant as selected on temperature selection dial. Burner flame is modulated by discharge temperature control, which is governed by remote temperature selector. ON/OFF switch for booth lights. FAN ON / BURNER ON mode: Heater operates continuously, supplying make-up air and maintaining a constant discharge temperature. FAN ON / BURNER OFF mode: Blower can operate without burner for cool down.	This control system incorporates ON/OFF switches and indicator lights for fan, burner and booth lights; SPRAY-CURE™ mode selector switch and indicator light; two discharge temperature selection dials (55°F-90°F and 120°F-170°F); adjustable timers for PURGE and CURE cycle and cure interlock relay. FAN / BURNER / BOOTH LIGHT ON - SPRAY mode: Heater operates continuously, supplying make-up air. Burner modulates maintaining a constant discharge temperature (55°F-90°F) SPRAY-CURE™ Selector switched to CURE mode: PURGE timer (adjustable) is energized. CURE timer (adjustable) is energized. BOOTH LIGHTS turn off. Temperature control switches to CURE selector (120°F-170°F). Burner modulates maintaining a constant discharge temperature. COOL down timer (preset) is energized. BOOTH LIGHTS turn ON. Temperature control switches to SPRAY selector (55°F-90°F). Burner modulates maintaining a constant discharge temperature. Heater turns off.

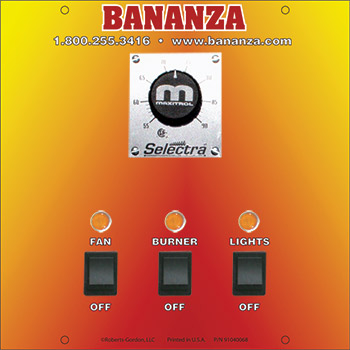

Basic II Spray Remote
Basic II (Spray) Remote

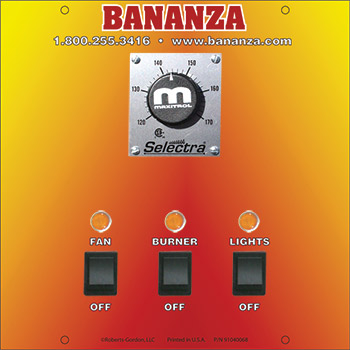

Basic II Cure Remote Basic II (Cure) Remote

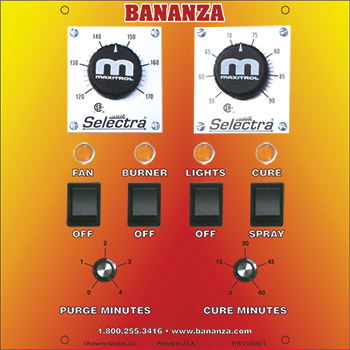

Dual #2 Remote

This control is used for spraying paint with discharge air temperature from 55°F to 90°F. Discharge temperature of heater remains constant as selected on temperature selection dial. Burner flame is modulated by discharge temperature control, which is governed by remote temperature selector. ON/OFF switch for booth lights.

FAN ON / BURNER ON mode:
Heater operates continuously, supplying make-up air and maintaining a constant discharge temperature.

FAN ON / BURNER OFF mode:
Blower can operate without burner for cool down.

This control is used for curing paint with discharge air temperature from 120°F to 170°F. Discharge temperature of the heater remains constant as selected on temperature selection dial. Burner flame is modulated by discharge temperature control, which is governed by remote temperature selector. ON/OFF switch for booth lights.

FAN ON / BURNER ON mode:
Heater operates continuously, supplying make-up air and maintaining a constant discharge temperature.

FAN ON / BURNER OFF mode:
Blower can operate without burner for cool down.

This control system incorporates ON/OFF switches and indicator lights for fan, burner and booth lights; SPRAY-CURE™ mode selector switch and indicator light; two discharge temperature selection dials (55°F-90°F and 120°F-170°F); adjustable timers for PURGE and CURE cycle and cure interlock relay.

FAN / BURNER / BOOTH LIGHT ON - SPRAY mode:
Heater operates continuously, supplying make-up air. Burner modulates maintaining a constant discharge temperature (55°F-90°F)

SPRAY-CURE™ Selector switched to CURE mode:
PURGE timer (adjustable) is energized. CURE timer (adjustable) is energized. BOOTH LIGHTS turn off. Temperature control switches to CURE selector (120°F-170°F). Burner modulates maintaining a constant discharge temperature. COOL down timer (preset) is energized. BOOTH LIGHTS turn ON. Temperature control switches to SPRAY selector (55°F-90°F). Burner modulates maintaining a constant discharge temperature. Heater turns off.

Digital Dual #1 Remote	Digital 60-160 Remote	BAMS Deluxe Digital Remote
This control system incorporates ON/OFF switches and indicator lights for fan and burner; SPRAY-CURE™ mode selector switch and indicator light; two discharge temperature selection dials (60°F-90°F and 80°F-180°F) with digital display; adjustable speed controls for exhaust fan in spray and cure mode and cure interlock relay. FAN / BURNER ON - SPRAY mode: Heater operates continuously, supplying make-up air. Burner modulates maintaining a constant discharge temperature (60°F-90°F). Spray speed pots adjusts booth pressure. FAN / BURNER ON - CURE mode: Temperature control switches to CURE selector (80°F-180°F). Burner modulates maintaining a constant discharge temperature. Cure speed pot adjusts booth pressure.	This control system incorporates ON/OFF switches and indicator lights for fan, burner and booth lights; discharge temperature selection dial (60°F-160°F) with digital display; adjustable speed control for exhaust fan and booth pressure gauge. Optional items include burner lockout and check filter indicator light and remote reset push button. FAN / BURNER / BOOTH LIGHT ON mode: Heater operates continuously, supplying make-up air. Burner modulates maintaining a constant discharge temperature (60°F-160°F). The booth pressure can be adjusted via the speed pit and observed on the pressure gauge.	This control system incorporates ON/OFF switches and indicator lights for fan, burner and booth lights; SPRAY-CURE™ mode selector switch and indicator light; tow discharge temperature selection dials (60°F-90°F and 80°F-180°F) with digital display; adjustable timers for PURGE and CURE cycle; adjustable cool down timer; adjustable speed controls for exhaust fan in spray and cure mode; booth pressure gauge and cure interlock relay. Optional items include burner lockout and check filter indicator light and remote reset push button. FAN / BURNER / BOOTH LIGHT ON - SPRAY mode: Heater operates continuously, supplying make-up air. Burner modulates maintaining a constant discharge temperature (60°F-90°F). Spray speed pot adjusts booth pressure. SPRAY-CURE™ Selector Switched to CURE mode: PURGE timer (adjustable) is energized. CURE timer (adjustable) is energized. BOOTH LIGHTS turn OFF. Temperature control switches to CURE selector (80°F-180°F). Burner modulates maintaining a constant discharge temperature. Cure speed pot adjusts booth pressure. COOL down timer (preset) is energized. BOOTH LIGHTS turn ON. Temperature control switches to SPRAY selector (60°F-90°F). Burner modulates maintaining a constant discharge temperature. Spray speed pot adjusts booth pressure. Heater turns off.

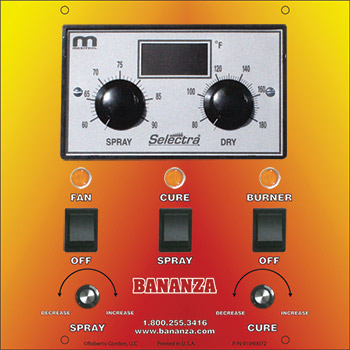

Digital Dual #1 Remote

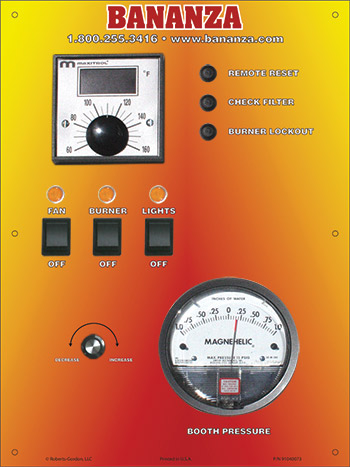

Deluxe Digital 60-160 Remote Digital 60-160 Remote

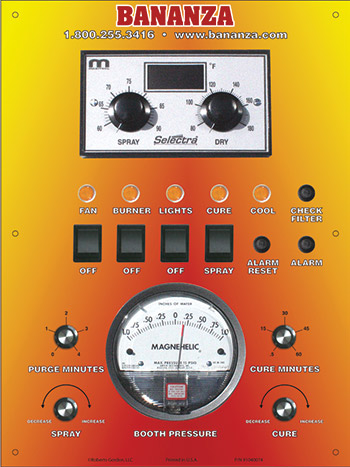

BAMS Deluxe Digital Remote

This control system incorporates ON/OFF switches and indicator lights for fan and burner; SPRAY-CURE™ mode selector switch and indicator light; two discharge temperature selection dials (60°F-90°F and 80°F-180°F) with digital display; adjustable speed controls for exhaust fan in spray and cure mode and cure interlock relay.

FAN / BURNER ON - SPRAY mode:
Heater operates continuously, supplying make-up air. Burner modulates maintaining a constant discharge temperature (60°F-90°F). Spray speed pots adjusts booth pressure.

FAN / BURNER ON - CURE mode:
Temperature control switches to CURE selector (80°F-180°F). Burner modulates maintaining a constant discharge temperature. Cure speed pot adjusts booth pressure.

This control system incorporates ON/OFF switches and indicator lights for fan, burner and booth lights; discharge temperature selection dial (60°F-160°F) with digital display; adjustable speed control for exhaust fan and booth pressure gauge. Optional items include burner lockout and check filter indicator light and remote reset push button.

FAN / BURNER / BOOTH LIGHT ON mode:
Heater operates continuously, supplying make-up air. Burner modulates maintaining a constant discharge temperature (60°F-160°F). The booth pressure can be adjusted via the speed pit and observed on the pressure gauge.

This control system incorporates ON/OFF switches and indicator lights for fan, burner and booth lights; SPRAY-CURE™ mode selector switch and indicator light; tow discharge temperature selection dials (60°F-90°F and 80°F-180°F) with digital display; adjustable timers for PURGE and CURE cycle; adjustable cool down timer; adjustable speed controls for exhaust fan in spray and cure mode; booth pressure gauge and cure interlock relay. Optional items include burner lockout and check filter indicator light and remote reset push button.

FAN / BURNER / BOOTH LIGHT ON - SPRAY mode:
Heater operates continuously, supplying make-up air. Burner modulates maintaining a constant discharge temperature (60°F-90°F). Spray speed pot adjusts booth pressure.

SPRAY-CURE™ Selector Switched to CURE mode:
PURGE timer (adjustable) is energized. CURE timer (adjustable) is energized. BOOTH LIGHTS turn OFF. Temperature control switches to CURE selector (80°F-180°F). Burner modulates maintaining a constant discharge temperature. Cure speed pot adjusts booth pressure. COOL down timer (preset) is energized. BOOTH LIGHTS turn ON. Temperature control switches to SPRAY selector (60°F-90°F). Burner modulates maintaining a constant discharge temperature. Spray speed pot adjusts booth pressure. Heater turns off.

Additional Features:

Listed to ANSI Z83.25 / CSA 3.19 direct gas-fired process air heaters
Purge Timer - Purge cycle occurs before cure cycle starts; utilizes TD2 timer. Purge cycle operates for a minimum of three minutes or four complete air changes of the paint booth volume, whichever is greater. Maximum field adjustability of 60 minutes.
Cure Timer - Cure cycle occurs after completed purge cycle; utilizes TD3 timer. During cure cycle, booth lights are locked out and entry into the booth is undesirable.
Cool Down Timer - Cool down cycle begins immediately after cure cycle finishes; utilizes TD4 timer. Cool down cycle, adjustable up to a maximum of 100 hours, allows finishing area temperature to return to temperature as measured during spray cycle.
Exhaust Motor Starters - Allows connection of spray booth exhaust system to air handler operation.
Contractor Lighting Panel - Additional lighting panel for paint spray booths allows a maximum of 30A at 120V and 220V. The panel can function as the booth light relay.

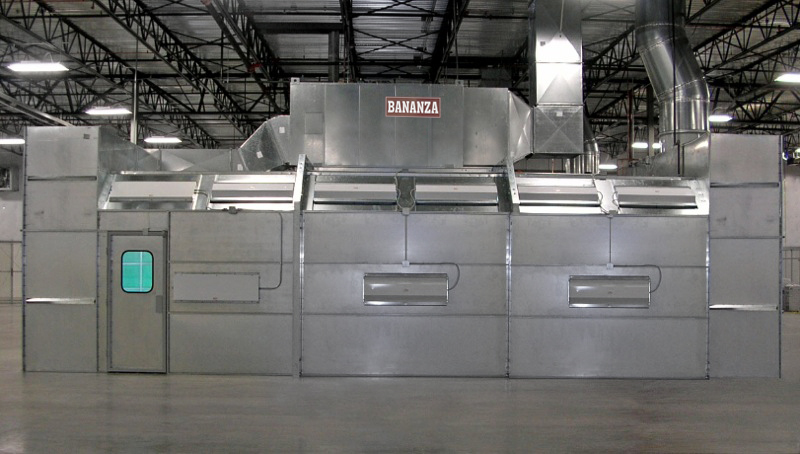

Top Mounted Industrial Truck Paint Booth Heater
